The Monarch Line District

Independence and Maple Plain · abstract, mock-up plan, legend and measured footage plan · working draft, September 2026

Abstract

Maple Plain’s neighborhoods end at the roundabout on US 12. West of it is Independence: fields, Lake Irene, horse farms, and the Twin City Polo Club a mile south on Turner Road. The Monarch Line district is a plan for what grows there when a train stops at the roundabout. It is a horse-country village built for families, drawn so that the fields stay fields and the town gets the things it has always had to drive for.

The station sits at a civic core, not in a parking lot: an activity center with a rink, a pool, a gym and a climbing wall; city hall; police; a state services office. Within a ten-minute walk are townhomes, small apartment buildings of four to sixteen units, shops on Main Street, a village green, a Christian school, church campuses, and the Marisol Center for women’s health, prenatal care, maternity housing and family support, with pediatrics and childcare, and housing beside it for the nurses who staff it. Beyond that walk the lots get larger, not smaller: estate lots of five to ten acres with barns and paddocks, a twenty-acre horse farm, an equestrian center with an indoor arena and trailer parking, and bridle trails to the polo club and the Luce Line horse trail. At Lake Irene, an outdoor campus with a camp, a gun range and a raptor center. Parking is in pockets of forty to fifty cars, plus a small paid park-and-ride pad at the station; there is no free lot. The Pioneer Creek marsh, the lake shore and the working farm are not developed.

The Monarch Line is the rail line through the district: west along the Luce Line corridor through Watertown, Winsted and Hutchinson to Cosmos, and by a branch up the Highway 55 corridor to Cold Spring and St. Joseph, with prairie strips of milkweed and native grass on both sides of the track. The exact route north is under study and will be compared on this page. The district is the worked example for the proposal’s land-use compact: every town on the line writes its own station-area rules before a line is drawn.

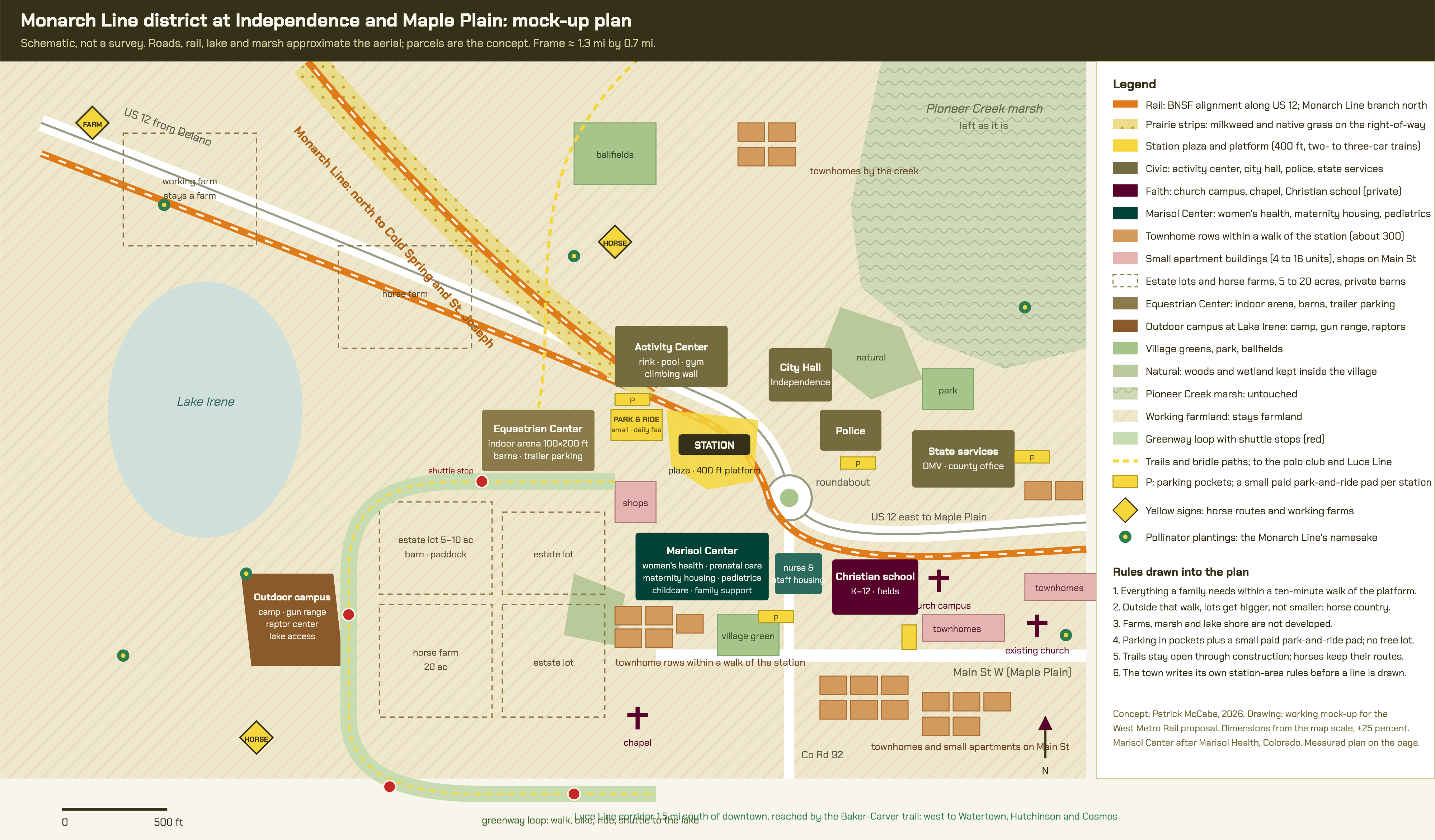

Mock-up plan

Legend

On the plan	What it is
Orange line	Rail. The line along US 12 follows the BNSF alignment east to Long Lake, Wayzata and Minneapolis; the branch to the north-west is the Monarch Line toward Cold Spring and St. Joseph.
Gold band on the branch	Prairie strips on the right-of-way: milkweed and native grass, the habitat the line is named for.
Yellow plaza with STATION	Station plaza and a 400-foot platform for two- or three-car trains, between the Activity Center and City Hall.
Olive buildings	Civic: Activity Center (rink, pool, gym, climbing wall), City Hall, Police, state services (DMV and a county office).
Dark red buildings and crosses	Faith: church campus, chapel, existing church, and a private Christian school (K to 12, with fields).
Dark green building	The Marisol Center, modeled on Marisol Health in Colorado (Catholic Charities of Denver): women’s health and prenatal care, ultrasound, counseling, maternity housing and family support, with pediatrics and childcare; nurse and staff housing beside it.
Small tan squares	Townhome rows within a walk of the station (Patrick’s blue hatch).
Pink blocks	Townhomes and shops on Main Street.
Dashed outlines	Estate lots of 5 to 10 acres and a 20-acre horse farm, each with its own barn and paddock.
Brown building	Equestrian Center: indoor arena 100 by 200 feet, barns, horse-trailer parking.
Brown block at the lake	Outdoor campus: camp, gun range, raptor center, lake access.
Green squares	Village green, park, ballfields.
Pale green shapes and wave pattern	Woods and wetland kept inside the village; the Pioneer Creek marsh, untouched.
Straw hatching	Working farmland: stays farmland.
Light green loop with red dots	Greenway loop for walking, biking, riding and a shuttle to the lake; red dots are shuttle stops.
Yellow dashed lines	Trails and bridle paths, including the route south to the Twin City Polo Club on Turner Road and to the Luce Line horse trail.
Yellow bars marked P	Parking pockets of 40 to 50 cars beside buildings, and a small paid park-and-ride pad at the station. No free lot.
Yellow diamond signs	Horse routes (HORSE) and working farms (FARM).
Green dots with yellow centers	Pollinator plantings scattered through the district.

Dimensions are measured from the original map file; see the measured footage plan below.

Rules drawn into the plan

Everything a family needs is within a ten-minute walk of the platform.
Outside that walk, lots get bigger, not smaller. This is horse country and stays horse country.
Farms, the marsh and the lake shore are not developed.
Parking is in pockets plus a small paid park-and-ride pad at each station. Polo match crowds and school events arrive by train and shuttle.
Trails stay open through construction and horses keep their routes.
The town writes its own station-area rules before a line is drawn.

Where the district sits on the corridor

The concept places the station on the BNSF alignment through the roundabout, which is the Highway 12 corridor in the comparison below. The Luce Line State Trail runs about a mile and a half south of downtown Maple Plain, and the Baker-Carver Regional Trail already links the two along Budd Avenue (OpenStreetMap geometry, checked 27 September 2026; an earlier version of this page placed the trail to the north). That is a corridor-choice input, not a settled decision: a downtown station argues for the Highway 12 line or a short spur from the Luce Line, and against a station out on the state trail.

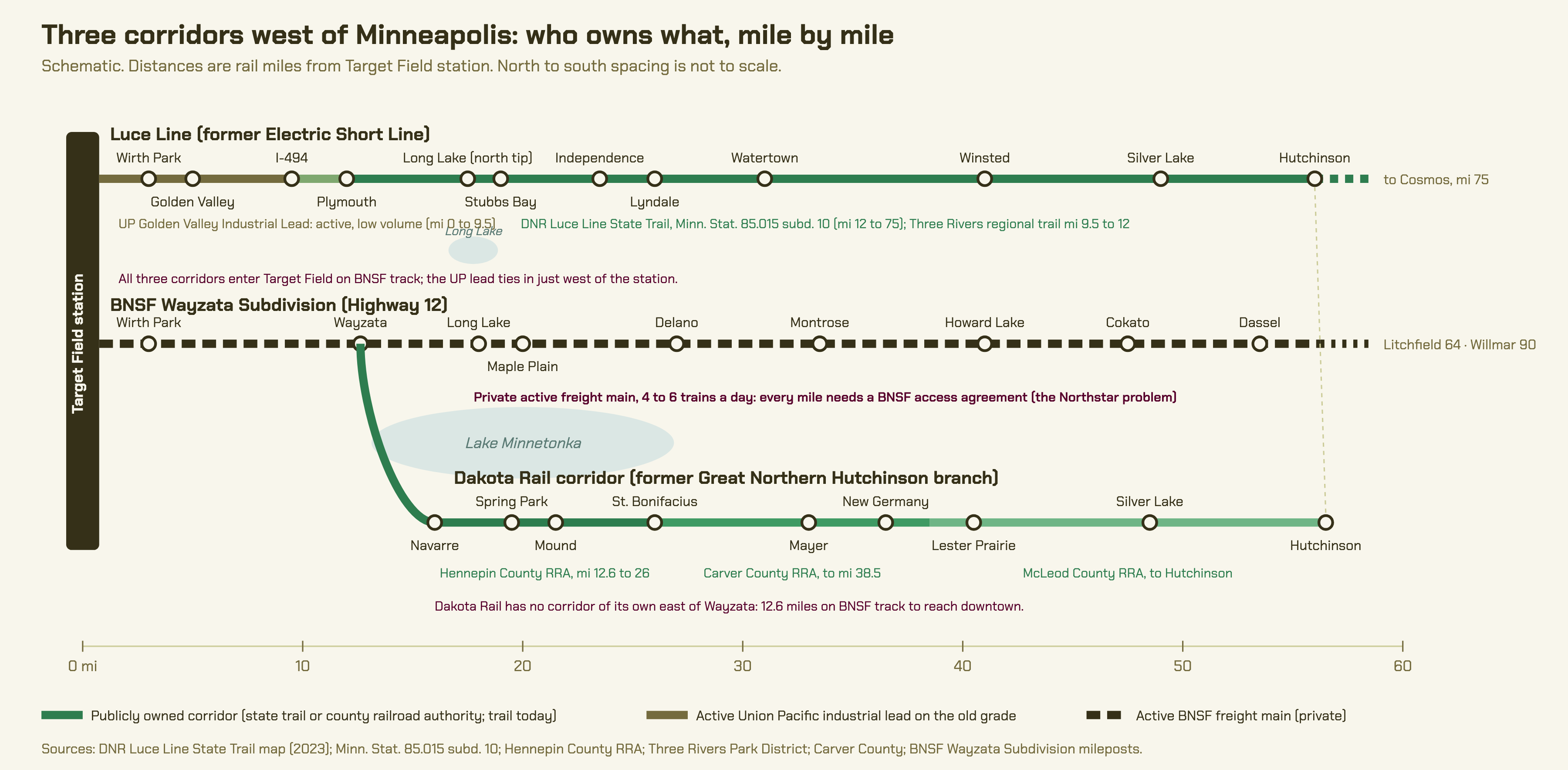

Three corridors west of Minneapolis: owner and legal status mile by mile — Three corridors west of Minneapolis, with owner and legal status mile by mile. Every one of them enters Target Field on BNSF track.

Measured footage plan

Measured from the original map file on 27 September 2026. The map’s scale bar puts 500 feet at 130 pixels, so one pixel is 3.85 feet and the frame is 7,690 by 4,940 feet, about 1.46 by 0.94 miles, or 870 acres. Every drawn color was classified pixel by pixel and grouped into shapes; solid shapes are accurate to about ±10 percent. Hatched townhome areas are given two ways, by neighborhood footprint (an overestimate) and by drawn coverage (an underestimate).

Patrick’s key, confirmed. Purple is multi-family and the number is units per structure. Blue hatch is townhomes. Yellow P is parking. Maroon is pre-existing buildings kept. Grey is civic. Brown is natural land and the outdoor campus. Light green is parks and the greenway. Red B is a shuttle stop. Orange is rail. Yellow diamonds are horse and farm signs; green flowers are pollinator plantings.

Use	Acres	What it holds
Civic (grey)	10.1	DMV 3.95, Religious Charter school 1.91, City Hall 1.21, Police 0.86, Activity Center about 1.0, one unlabeled strip 0.8
Multi-family (purple)	8.3	10 buildings; labeled 10, 10, 5, 5, 5, 5 units; unlabeled blocks at 9 units per acre; about 72 units in all
Townhomes (blue hatch)	60.7 footprint / 6.9 drawn	Seven neighborhoods; 250 to 400 townhomes; 300 is the working number
Existing buildings kept (maroon)	6.7	Seven buildings, the largest 2.0 acres north of the highway
Parks and greens (light green)	27.8	Greenway loop band 7.8, Park G north 5.3, park at the roundabout 3.0, and eight smaller greens
Natural inside the village (brown)	4.4	Four wetland and woodland pieces left alone; the outdoor campus marker at Lake Irene is 3.9 acres more
Parking (yellow P)	4.6	About 550 stalls at 120 per acre; the four signs are excluded
Station wedge (orange)	≈ 7	Platform, plaza, shuttle loop and the small paid park-and-ride pad; base about 690 feet, height about 940 feet
Marisol Center and nurse housing	≈ 1.5	Modeled on Marisol Health: women’s health and prenatal care, ultrasound, counseling, maternity housing, family support
Shuttle stops (red B)	–	About 15 drawn on the greenway loop and the east loop
Not drawn on	≈ 730	Fields, Lake Irene, the Pioneer Creek marsh and the existing neighborhoods east of Meadow Lane stay as they are

Totals by use, drawn shapes of 0.1 acre or more

Use	Parcel	Width × height (ft)	Acres
Civic	DMV	731 × 377	3.95
Civic	Religious Charter school	462 × 354	1.91
Civic	City Hall	223 × 392	1.21
Civic	Police	377 × 200	0.86
Civic	Grey strip south of Main St (unlabeled)	577 × 154	0.82
Civic	Activity Center (rink, pool, gym, climbing wall)	254 × 277	0.71
Civic	Activity Center (west part)	223 × 177	0.25
Multi-family	MF-1 north block, 10 units	246 × 246	1.14
Multi-family	MF-2 L-shaped block east of Main St	338 × 362	1.14
Multi-family	MF-3 east block by Henry St	238 × 362	0.96
Multi-family	MF-4 south row, 10 units	231 × 238	0.87
Multi-family	MF-5 triangle at station	231 × 262	0.75
Multi-family	MF-6 south of Main St	308 × 169	0.73
Multi-family	MF-7 south row, 5 units	146 × 238	0.66
Multi-family	MF-8 south row, 5 units	146 × 246	0.65
Multi-family	MF-9 south row, 5 units	138 × 246	0.59
Multi-family	MF-10 south row, 5 units	115 × 238	0.58
Multi-family	MF-2 L-shaped block, second piece	69 × 146	0.19
Existing building	North (industrial area)	238 × 462	2.04
Existing building	South of Main St	446 × 238	1.69
Existing building	By the station (west)	169 × 300	0.90
Existing building	South (Crest)	254 × 146	0.73
Existing building	South 2	254 × 108	0.50
Existing building	At the roundabout	338 × 169	0.42
Existing building	At the roundabout 2	192 × 154	0.40
Park / green	Greenway loop band (west)	669 × 1831	7.84
Park / green	Park G north	515 × 492	5.27
Park / green	Park G at the roundabout	977 × 338	2.97
Park / green	Green east with horse sign	331 × 915	2.94
Park / green	Green with B-loop (east)	554 × 608	2.47
Park / green	Green east strip	231 × 554	1.59
Park / green	Green south	377 × 285	1.18
Park / green	Green south-west	315 × 254	0.96
Park / green	Green far east	277 × 338	0.87
Park / green	Green G south of Main	238 × 169	0.77
Park / green	Green far east 2	223 × 392	0.58
Park / green	Small green (unlabeled)	115 × 85	0.19
Park / green	Green with B-loop, second piece	162 × 262	0.18
Natural / outdoor	Outdoor camp, gun range, raptor center (marker)	538 × 585	3.91
Natural / outdoor	Natural (northeast, by Police)	815 × 831	1.90
Natural / outdoor	Natural (west of Main St)	315 × 415	1.37
Natural / outdoor	Natural (center)	246 × 292	0.78
Natural / outdoor	Natural arc (northeast)	554 × 115	0.34
Parking	P long bar by Religious Charter	585 × 146	1.19
Parking	P at the station	185 × 400	0.62
Parking	P at the roundabout	146 × 215	0.39
Parking	P north (by existing building)	169 × 108	0.37
Parking	Eleven pockets of 0.12 to 0.26 acre each	62 to 238 across	2.0

Every drawn parcel of 0.1 acre or more. Townhome pieces are grouped in the next table; the four signs are excluded.

Neighborhood	Footprint (ft)	Acres (bounding box)
TH-1 south-west, along the greenway	1400 × 669	21.5
TH-2 east, Henry St to Meadow Ln	900 × 1008	20.8
TH-3 center, west of Main St and the Marisol Center	669 × 962	14.8
TH-4 far south-west	169 × 638	2.5
TH-5 by Lake Irene (B stop)	154 × 115	0.4
TH-6 by Lake Irene 2	146 × 100	0.3
TH-7 by Lake Irene 3	100 × 146	0.3
Total footprint		60.7

Townhome neighborhoods by footprint

Two numbers to sit with. First, the drawing adds roughly 370 homes (about 300 townhomes and 72 apartments) beside a city of about 700 households, which is why the program will be phased and why sewer capacity is the first engineering question. Second, the station wedge and the parking together cover about 12 acres, more than the civic buildings; that is where the paid park-and-ride pad and the shuttle loop earn their keep by keeping the pads small.

Parking rule, as instructed. Each station gets a small park-and-ride pad with a small daily fee, never a free lot. The fee funds upkeep and the shuttle. Pockets beside buildings stay.

The east half: downtown Maple Plain

A second map arrived on 27 September 2026 covering downtown Maple Plain east of the first one: from Meadow Lane and Three Oaks Avenue on the west to Baker Park Road on the east, Perkinsville Road on the north and Maple Airport on the south. Its scale was set from two downtown intersections located in OpenStreetMap, Budd Avenue at Main Street East and Baker Park Road at Independence Street: 3.3 feet per pixel on the 2,800-pixel file, good to about 3 percent. The frame is about 1.75 by 1.25 miles. Together the two maps cover the whole district and overlap for about 900 feet along Meadow Lane.

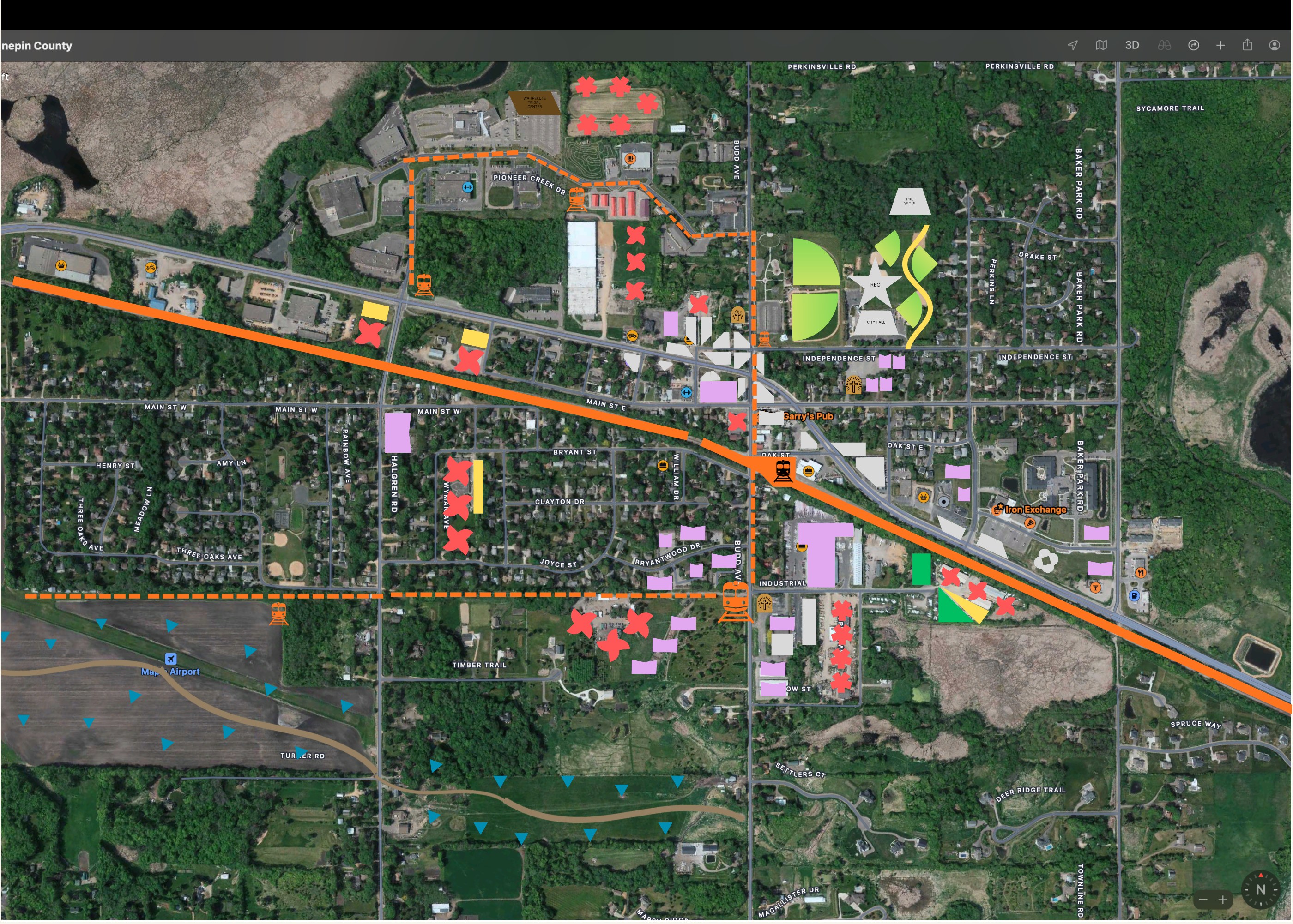

Patrick McCabe's annotated aerial map of downtown Maple Plain — Patrick McCabe’s second map: downtown Maple Plain with the station at Budd Avenue and Oak Street, a dashed circulator loop through the industrial park and the south side, the recreation center and city hall, the Wahpekute Tribal Center, and the fields by Maple Airport. Click to open at full size.

What the drawing places: the station at the center of downtown on the BNSF alignment, where Budd Avenue crosses Main Street East and Oak Street; a dashed loop with train icons running north up Budd Avenue and west along Pioneer Creek Drive through the industrial park, and a second dashed line south along the Timber Trail latitude to the fields by the airport, read as a local circulator; a star-shaped recreation center with lawns and fields beside City Hall, and a preschool to the north; a Wahpekute Tribal Center at the north edge by the industrial park; multi-family blocks scattered through downtown and the south side; parking bars; a trail by the recreation center; and a green and yellow gateway wedge where the highway enters town from the east.

Use	Acres	Shapes
Rail line, station and circulator loop (orange)	18.2	95
Civic and kept buildings (grey)	13.3	48
Multi-family (pink)	10.5	23
Red X marks and red flowers (meaning to confirm)	9.4	25
Parks and lawns (green)	7.2	7
Parking and trail (yellow)	2.7	5
Blue triangles in the fields (meaning to confirm)	2.1	25

East half, drawn shapes by use, at the corrected scale. The largest single shapes: a multi-family block on the industrial side at 2.5 acres, the two recreation center lawns at 2.0 acres each, the star-shaped recreation center at 0.9 acre and City Hall at 1.0 acre.

Four symbols still need Patrick’s key. About twenty red X marks on existing buildings and sites; a dozen red four-petal flowers in the north and south fields and the industrial park; about forty blue triangles in rows across the fields by Maple Airport; and a brown curving band through the south fields. Until he says what they mean they are measured but not programmed.

The whole district on one map

Both drawings are placed on real ground here. The west map is pinned to the US 12 roundabout at 3.85 feet per pixel and the east map to the downtown grid at Budd Avenue at 3.31 feet per pixel, so the two overlap along Meadow Lane and read as one district about three miles long, from Lake Irene to Baker Park Road. The views below are stills from the interactive map, with the drawings at 85 percent so the ground shows through. Click any of them to open at full size.

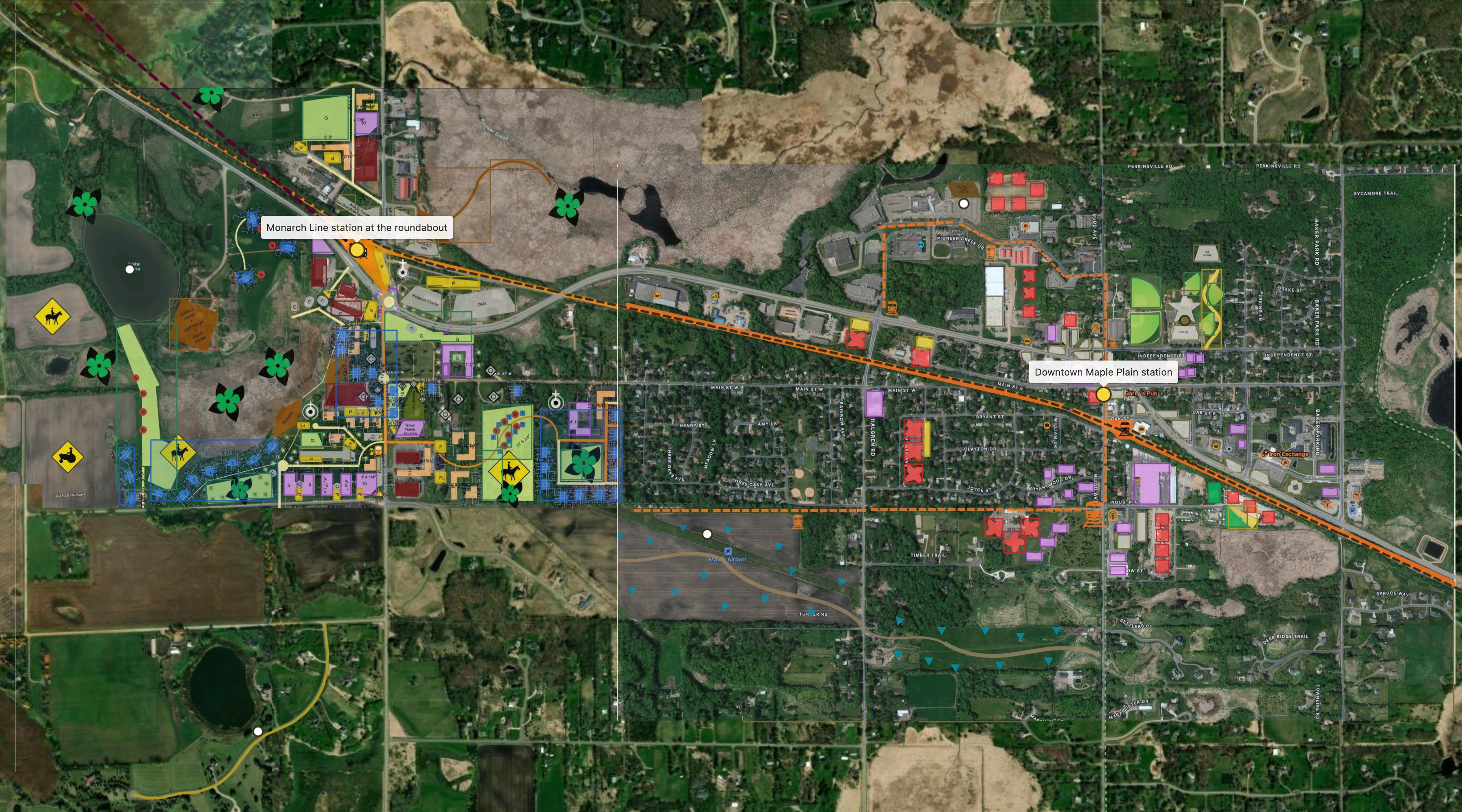

Both hand-drawn plans placed on an aerial photograph of Independence and Maple Plain, with the BNSF line and the two stations — The whole district on the aerial, Lake Irene on the left and Baker Park Road on the right. Solid orange is the BNSF alignment through both stations; the dashed dark-red line is the Monarch Line branch north as drawn; the gold road at the bottom left is Polo Club Road. The Luce Line State Trail runs a mile and a half south of downtown, just below this frame.

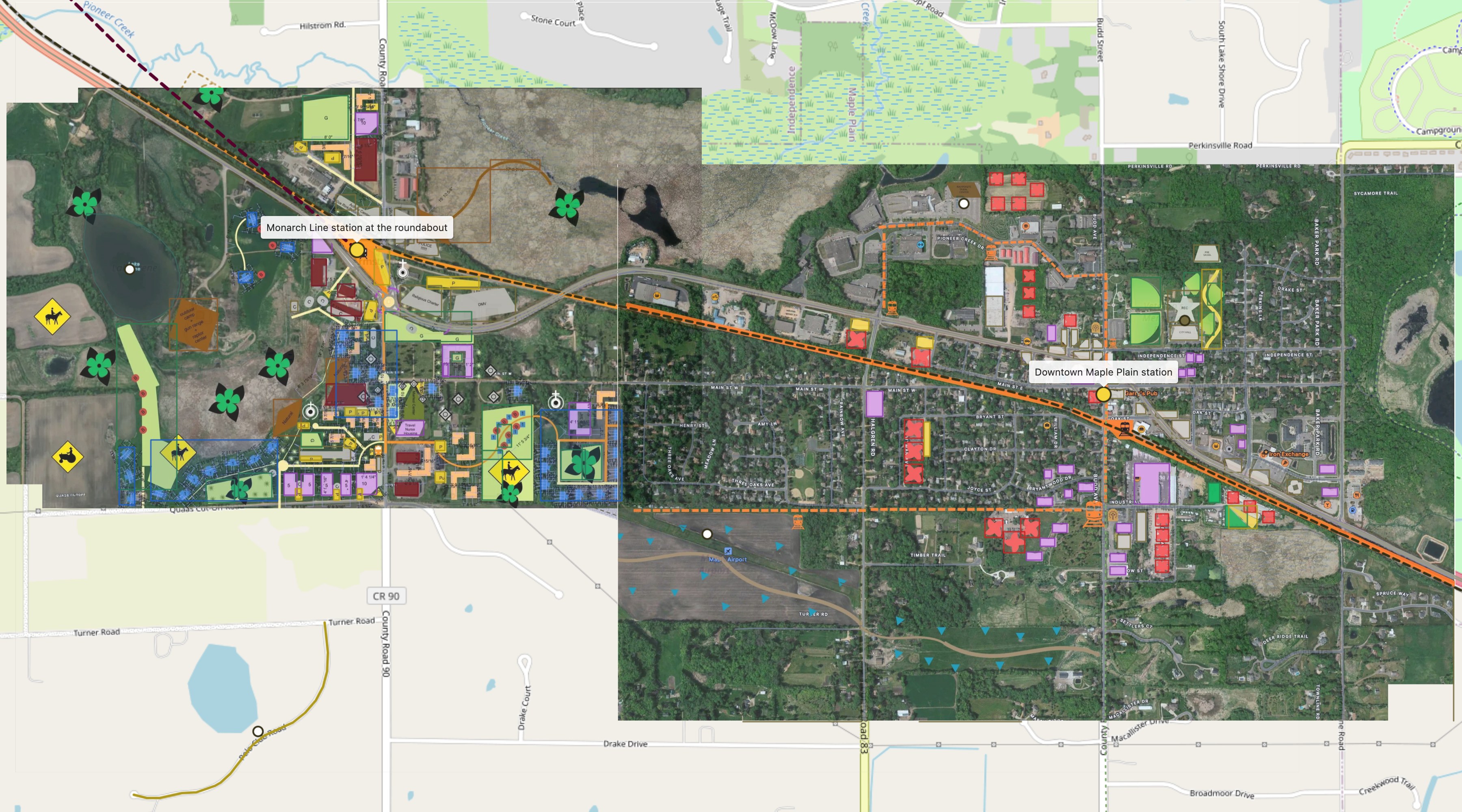

Both hand-drawn plans placed on a street map of Independence and Maple Plain, with road names — The same frame on the street map, for orientation by road name: US 12 and the BNSF line through the middle, County Road 90 at the roundabout, Budd Avenue and Baker Park Road downtown.

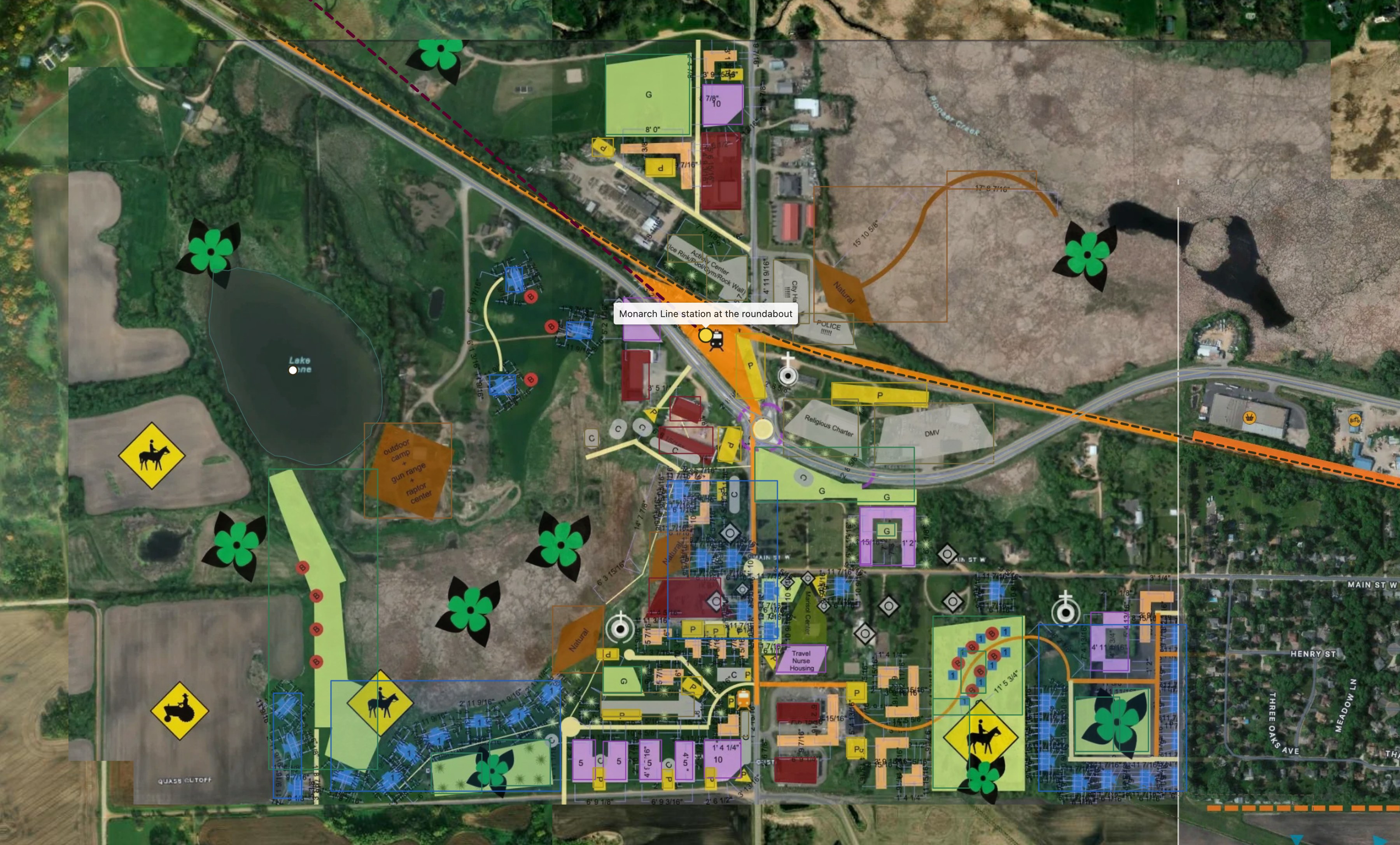

The Independence half of the plan on the aerial: Lake Irene, the roundabout station, the civic core, townhome neighborhoods and the greenway loop — West half: Independence, from Lake Irene to Meadow Lane. The station wedge sits on the BNSF line at the roundabout, with the civic core beside it, townhome neighborhoods along Main Street and the greenway loop, the outdoor campus at Lake Irene, and the horse and farm signs on the fields that stay open.

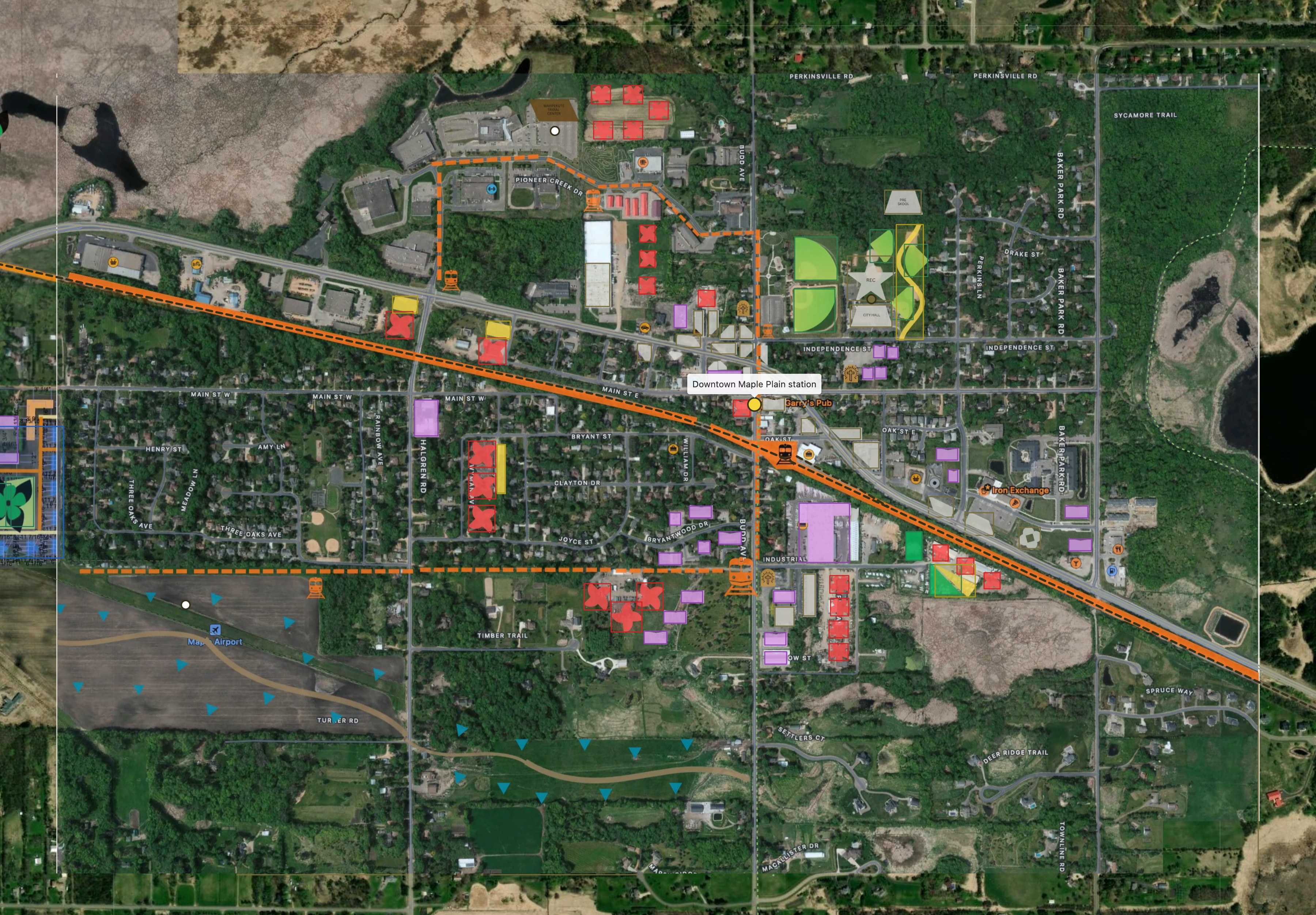

The downtown Maple Plain half of the plan on the aerial: the station at Budd Avenue, the circulator loop, the recreation center and city hall, and the fields by Maple Airport — East half: downtown Maple Plain, from Meadow Lane to Baker Park Road. The downtown station sits where Budd Avenue meets Main Street East; the dashed loop through the industrial park and the south side is the circulator as drawn; the recreation center and City Hall are at the top right; the blue triangles in the fields by Maple Airport are still to be keyed.

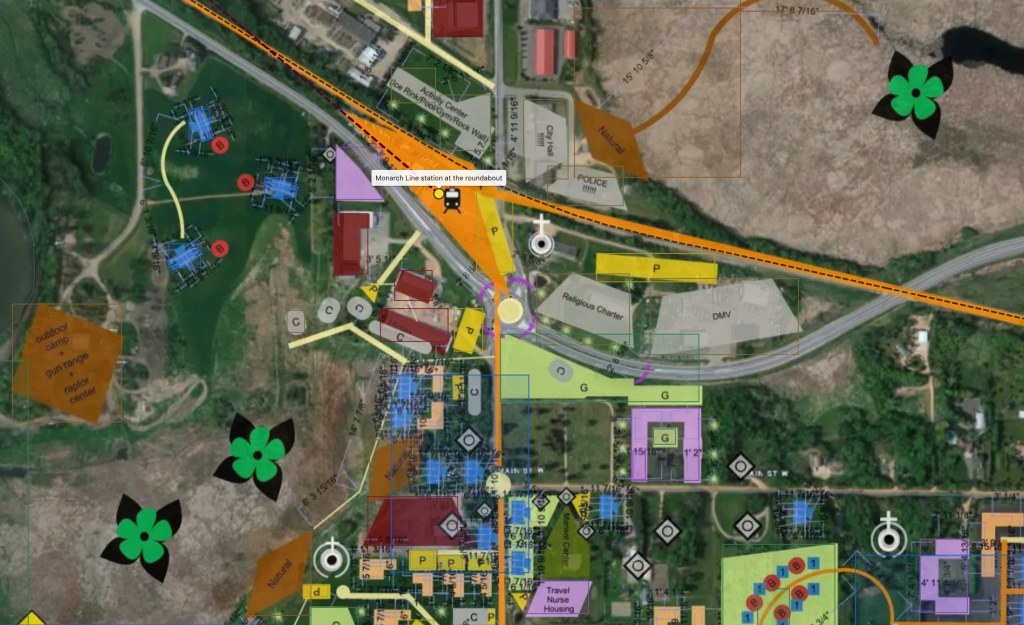

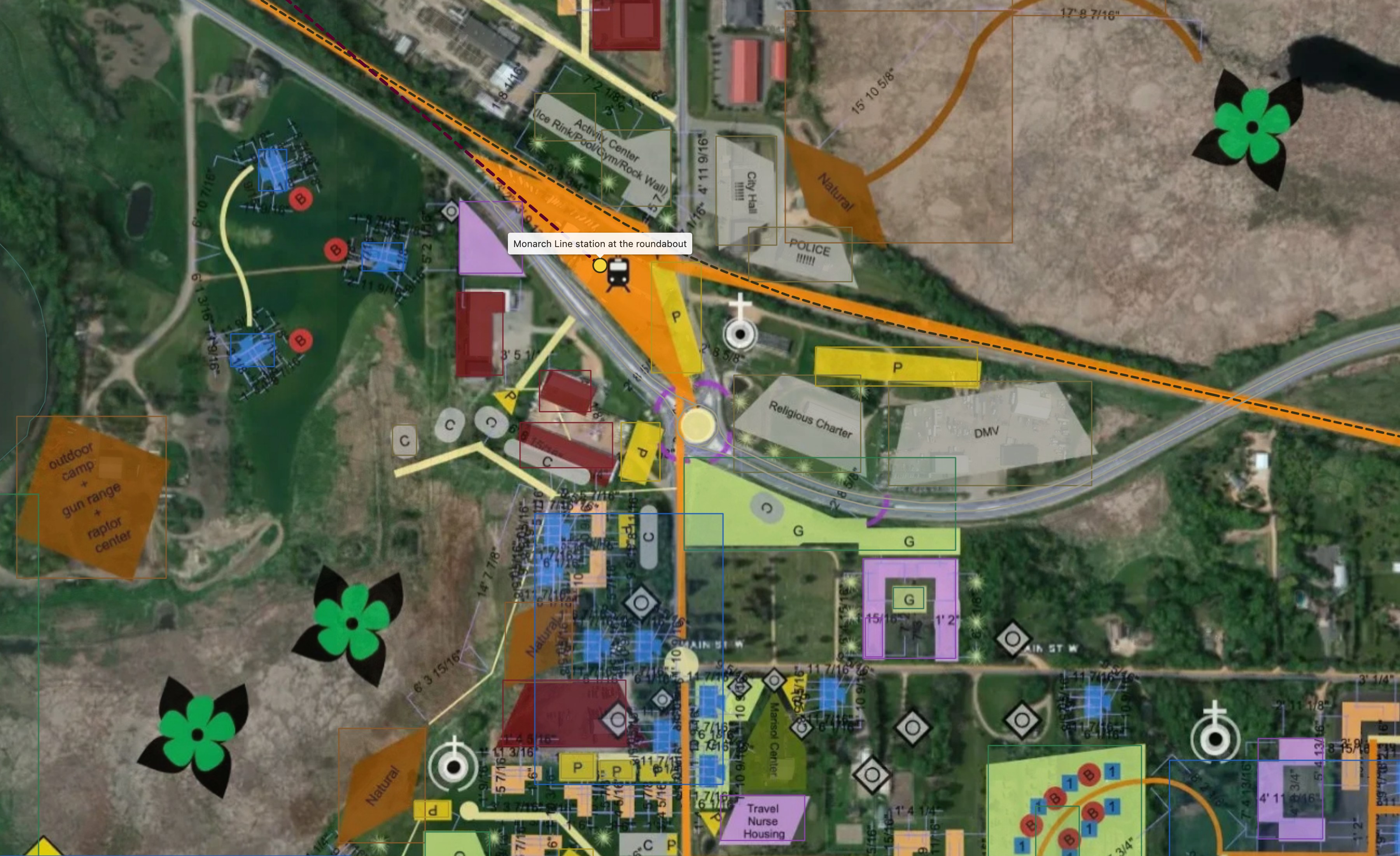

Close-up of the roundabout station on the aerial — Close-up: the roundabout station and civic core, where Independence meets Maple Plain.

Close-up of the downtown Maple Plain station on the aerial — Close-up: the downtown Maple Plain station at Budd Avenue and Main Street East.

The interactive version. The same map pans and zooms, lets you click any measured parcel for its acreage, switches between aerial and street views, and fades either drawing in or out. This site does not run map scripts, so it is hosted separately and will be linked from here.

Imagery © Esri and partners; street map data © OpenStreetMap contributors; drawings © Patrick McCabe, 2026. Each drawing is pinned by known intersections and its own scale; expect errors of a few percent across a drawing.

Design notes

On “luxury.” Inside the coalition the word says what you mean: quality, permanence, craft. In a council chamber in Independence it reads as exclusion and higher taxes. The plan says “estate district” and “village” in public and reserves “luxury” for the marketing of homes, where buyers expect it.

On families. The Marisol Center, the school, the churches and the family-sized homes state the town’s values in the affirmative: this is a place that welcomes children. The plan does not define the district against Minneapolis. A contrast reads as a campaign line and invites a fight the town does not need; the affirmative reads as a choice the town made.

On the word “sprawl.” The proposal’s whole case is that rail lets towns grow without sprawl. What is drawn here is the anti-sprawl version of growth: a compact village at the platform, horse country beyond it, farmland and marsh untouched. Large lots for horses are the open space, not the sprawl, as long as the compact holds.

On the school. Minnesota charter schools must be nonsectarian, and the 2025 Supreme Court split left that rule in place. The plan therefore shows a private Christian school. A nonsectarian classical charter is the alternative.

On taxes. The money model is a public-private cooperative, as instructed: no new general taxes and no county railroad levy. The public partners bring the corridor, permits, planning and existing transit funds; a member-owned cooperative of landowners, developers, businesses, towns and riders carries construction and operations through development value, memberships and private capital. The proposal will say plainly what private capital has and has not built in American regional rail.

Decisions recorded, 27 September 2026

Blue hatch is townhomes.
Numbers on the purple blocks are units per structure.
The Marisol Center follows Marisol Health in Fort Collins and Greeley, Colorado.
The Monarch Line runs the Luce Line to Cosmos, with a branch up Highway 55 to Cold Spring and St. Joseph.
Maroon buildings are pre-existing and kept.
No new taxes: the money model is a public-private cooperative, not a levy.
The original map file was supplied and measured.
Each station gets a small park-and-ride pad with a small daily fee.

Coming next on this page

The development program built on the measurements above: buildings, floor area, homes, parking and the ratios used, with costs; the station, equestrian and Marisol Center programs; the Monarch Line route north, segment by segment, with owners and obstacles; the public-private cooperative money model; phasing; and the risks. Research on Maple Plain’s existing conditions, the polo club, the churches, the route north and the cooperative model is in progress. A link to the interactive map will be added once it is hosted, and the four unkeyed symbols on the east map will be programmed once their meaning is confirmed.
